Current research projects

23. Wood fibre morphology
    Mattias Moëll, Gunilla Borgefors
    Funding: Wood and Wood Fiber graduate school; SLU S-faculty
    Period: 9509-0203
    Partners: Lloyd L. Donaldson, Forest Research New Zealand Ltd., Rotorua, New Zealand;
    Minoru Fujita, Graduate School of Agriculture, Kyoto University, Japan
    Abstract: The morphology of wood fibres is of great importance to the mechanical properties of pulp and paper. For the forest industry to be able to produce new products, renew processes, and to maximise the use of the wood fibre potential, more knowledge of the fibre morphology is needed. The project concentrated on analysis of fibre cross-sections in confocal microscopy images of transverse sections of wood. The aim was to measure as many parameters as possible, such as: cell wall width, radial/tangential lumen width, fraction of cell wall area, and degree of compression wood. A fully automatic image analysis method was developed, where each individual fibre was measured, and the measures are averaged along the wood section. The same method can be used for different wood species by changing a few parameters. In December 2001, Moëll successfully defended his PhD thesis.

24. Analysis of AFM images of wood fibres using image analysis algorithms
    Carolina Wählby
    Funding: UU TN-faculty
    Period: 0101-
    Partners: Jesper Fahlén, STFI, Swedish Pulp and Paper Research Institute, Stockholm
    Abstract: Understanding the arrangement of wood polymers within the fibre wall is important for understanding the mechanical properties of the fibres themselves. Due to their high load bearing ability, the arrangement of cellulose fibrils within the cell wall are of special interest. In this work AFM-Atomic Force Microscopy-in combination with image analysis algorithms originally developed for cell segmentation has been used to obtain more information about the arrangement of cellulose aggregates (fibrils) in the secondary cell wall layer of spruce wood. The effects of chemical processing on the arrangement of these cellulose aggregates were also studied. Enlargement of cellulose aggregates was found in the initial phase of the kraft cook. This increase in cellulose aggregate dimensions depended mostly on temperature for treatment temperatures above 140°C, regardless of the amount of alkali present. Although hemicelluloses are lost to various degrees under alkaline conditions, the increase in cellulose aggregate size was mainly related to thermally induced rearrangement of the cellulose molecules. The mean side length of cellulose aggregates was found to be around 18 nm in unprocessed wood and 23 nm in processed wood. The cellulose aggregates were assumed to be square shaped in cross section in both cases.

25. 3D tracking of fibres in paper
    Mattias Aronsson, Stina Svensson, Gunilla Borgefors
    Funding: Swedish Foundation for Strategic Research, VISIT programme, SLU S-fak
    Period: 9710-
    Partners: Björn Kruse, Arash Fayyazi, Dept. of Science and Engineering, Linköping University, Campus Norrköping; Örjan Sävborg, Olle Henningsson, StoraEnso Research, Falun; Per Nygård, Cristine Antoine, Rune Holmstad, Norwegian Pulp and Paper Research Institute (PFI), Trondheim, Norway
    Abstract: Using image analysis on paper samples can increase the understanding of the individual fibres build up the paper and what effects different types of fibre networks have on paper properties. This network of fibres is a very complicated structure and creating images of it is a challenging problem. It is essential to use 3D volume images, since 2D images cannot capture enough information of the fibre network. Fibres are thin, so the resolution must be in the micrometer range, to enable accurate measurements. Our main concern is developing the necessary imaging and analysis tools to enable a practical process method for creating volume images of paper samples, and then use these images to measure various properties of the fibre network. The main data set used is a volume image created from a series of 2D scanning electron microscopy (SEM) images captured at StoraEnso Research, Falun. We have now created a rather large digital volume of a paper sample from the original data set, see cover page, for a visualisation of a small part of the paper volume.
    As fibre curvature effects the mechanical properties of paper, we are developing methods to estimate the curvature. The theoretical work, i.e., curvature estimations for voxels in a discrete curve, is described in Project 41. Initial results, where the curvature estimator was used in the analysis of the fibres, were presented at the SSAB symposium in Lund. Continuing our efforts to develop three dimensional measurements, we added a method for twist and aspect ratio estimation, which was presented at ICPR in Québec, Canada. A previous fibre detection algorithm assumed a quadratic grid. This was generalised and the new method developed was presented at ICIP in Rochester, NY, USA. A number of different types of fibre and fibre network measurements have also been developed. Many of the measurements are based on using distance transformations (see Project 37) of the fibres, fibre walls, fibre lumens, and the paper pores. An article where we describe many distance based measures was accepted for publication in a special issue of IEEE Transactions on Systems, Man and Cybernetics, and will be published during 2003. For Aronsson, preparations for the PhD thesis dominated this year's work. This included finalising and description of the progress and the insights gathered during the project in a structured manner. On 12 December 2002, Aronsson successfully defended his thesis entitled ``On 3D Fibre Measurements of Digitized Paper - from Microscopy to Fibre Network''. See Section 4.3.

26. Analysing the structure of paper sheet through confocal microscope images
    Ingela Nyström
    Funding: UU TN-faculty
    Period: 0205-
    Partners: Catherine Östlund, Swedish Pulp and Paper Research Institute (STFI), Stockholm
    Abstract: It is of interest to study the structure of paper surface under different pressure to measure how the pores change. One possible way is to produce confocal microscope images of paper sheet and analyse these. The original three-dimensional (3D) images consist of, in principle, cubic voxels which can be transformed to two-dimensional (2D) grey-level images, where the grey-levels correspond to the depth at which the first paper fibre is visible, i.e., how deep the pores penetrate into the paper. Initially, we have analysed three such 2D grey-level images, where the pressure has been low, medium, and high, respectively. The pressure may be unevenly distributed, a problem overcome by computing a grey-level convex hull (see Project 35).

27. Image analysis methods for food quality measurements
    Lucia Ballerini, Gunilla Borgefors
    Funding: Foundation for Strategic Environmental Research (MISTRA), FOOD 21 programme
    Period: 9908-0209
    Partners: Dept. of Food Science, SLU, Uppsala; Wallenberg Laboratory, Sahlgrenska University Hospital, Göteborg
    Abstract: FOOD 21 is a broad scientific project, aimed to develop sustainable food production methods. Image processing methods have been successfully applied to meat images in order to determine the percentage and the distribution of fat and various defects. We have been working with camera photographs and Magnetic Resonance images. Segmentation algorithms have been optimised for these kinds of images, in order to classify different substances as muscle, fat and connective tissue. Moreover, we developed methods to measure homogeneity of fat distribution. Indeed, fat distribution is an important criterion for meat quality evaluation and its expected palatability. This method is simple and accurate and gives a description of feature distribution and a measure of homogeneity, depending on both size and spatial organisation of features, without requiring any individual measures of them. Similar segmentation techniques and distribution measurements have also been developed for defects in processed meat, such as pores, holes, and cracks. See Figure 10. Different meat processing methods have been evaluated using these results. This year the project has produced one article in ``IEEE Transactions on Nuclear Science'' and three conference papers.

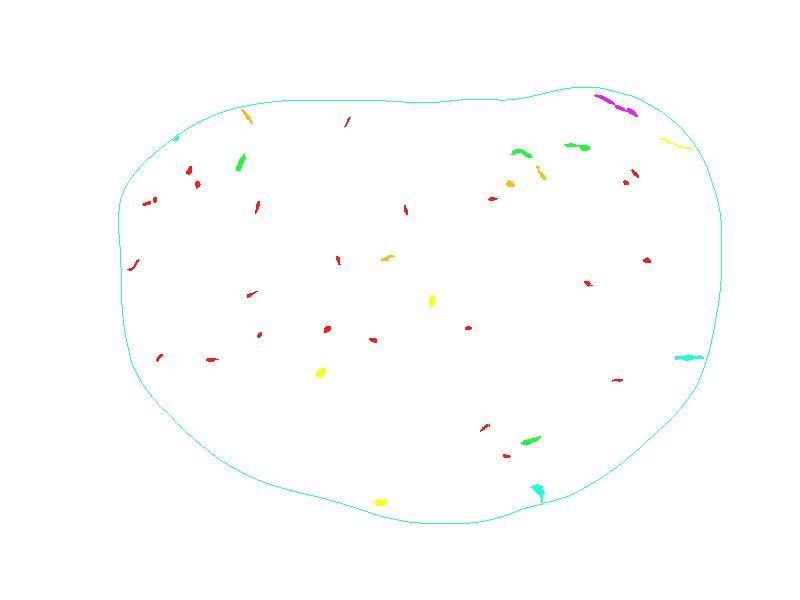

    Figure 10: Digital camera image of pig meat and extracted holes (holes are coloured based on their size).

28. New techniques for information extraction by using new neuro-fuzzy systems
    Hamed Hamid Muhammed
    Funding: UU TN-faculty, Swedish National Space Board
    Period: 0201-
    Abstract: New neuro-fuzzy systems, which imitate the functionality of the biological visual system, were developed in this work based on the new so-called Weighted Neural Networks (WNN). The basic idea of WNNs, is to modify well-known Artificial Neural Networks (ANN) by additional mechanisms to be able to capture/calculate and store as much useful information as possible about the input data set at hand. So far, two main types of WNNs can be recognised: incremental and fixed (or grid-partitioned) depending on the original ANN algorithm used as a start point. It seems possible to make a WNN version for every existing ANN. The WNN algorithm (incremental or grid-partitioned) produces a net of nodes connected by edges. Additional weights, which are proportional to the local densities in the input space, are associated with the resulting nodes and edges to store useful information about the topological relations in the given input data set. A fuzziness factor, proportional to the connectedness of the net, is introduced in the system. The basic idea is based on the famous Hebb's postulate which states that the connection between two winning neurones gets stronger. The result is a weighted connected net, consisting of weighted nodes connected by weighted edges, which reflects and preserves the topology of the input data set, and in addition to that, it acts as a fuzzy representation of the input data set. Two main types of WNNs have been recognised, so far:
    • Weighted Fixed Neural Networks (WFNN): The basic idea here is to distribute a number of zero-weighted nodes, as an equidistant initial grid in input space where the input data set is found. Then, weights are assigned to these nodes, where a relatively high node-weight corresponds to a relatively high density in a neighbourhood around the node in input space. In addition to that, the algorithm connects neighbouring nodes with weighted connections or edges, where an edge-weight is also proportional to the density of input data in the region between the connected nodes (or in a neighbourhood around the edge). A fuzziness factor is introduced here as mentioned above. The work has resulted in a refereed journal paper presenting the WFNN algorithm.
    • Weighted Incremental Neural Networks (WINN): The WINN is an incremental self-organising model with no pre-defined structure, and therefore no restrictions on the dimensionality of the input data set, which can have different dimensions in different regions of input space. The model is built by successive addition, adaptation, and sometimes deletion of elements (i.e., nodes and edges), according to suitable strategies, until a stopping criterion is met. Here also, a weighted connected net, which preserves the topology of the input data set, is produced. The algorithm begins with only two nodes connected by an edge, then new nodes and edges are generated and the old ones are updated (and sometimes deleted) while the learning process proceeds until a certain stopping criterion is met. Here also, a fuzziness factor is introduced here as mentioned above when talking generally about WNNs.

29. Genetic snakes
    Lucia Ballerini
    Period: 0107-0209
    Abstract: Genetic Snakes are active contour models, also known as snakes, with an energy minimisation procedure based on Genetic Algorithms. Genetic Snakes have been proposed to overcome some limits of the classical snakes and successfully applied to medical, radar and meat images. During 2002, they have been extended by using a new form of the image energy which considers texture features. They have been applied to segment liver in CT images, which was presented at EMBEC in Vienna in December 2002). The model has also been extended by adding an elastic force that couples multiple contours together and create what we call ``multiple genetic snakes''. This model has been used to segment bones in hand radiograms, which will be presented at SPIE Medical Imaging in San Diego in February 2003. A further extension, currently under study, is the evolution of the weights and the functionals that control the snake behaviour, i.e., the internal energy determined by the elasticity and rigidity of the snake, and the image energy representing the characteristics of the image (intensity, gradient, etc.).

30. Modelling of natural objects
    Felix Wehrmann, Ewert Bengtsson
    Funding: UU TN-faculty
    Period: 9912-
    Abstract: This project started under the scope of the general idea of model-based segmentation. A large number of images, especially from the medical sector, lack a proper description of the objects the image analyst is interested in. Often, this leads to poor results of automated segmentation procedures, if any. Incorporating information about the shape of an object is one possible completion of an object description. However, models that provide shape descriptions usually lack the power to compensate for the variation nature supplies us with. As an example, we could ask ourselves, which features make us easily recognise and localise a brain in a medical 3D-image, a task which has automated solutions only in specific cases.
    With the intention to compensate for natural variation, we applied a number of common concepts to the problem. In particular, orthogonal transforms, such as PCA and ICA, have been inspected in an attempt to derive the characteristic correlations between similar shapes. Moreover, the applicability of Markov random fields as a stochastic modelling concept was analysed.
    It turned out that a general model should not be dependent on landmarks as required for the previous transformations. Since variations in landmark-less shape data appear as non-linear manifolds, a neural network was designed to acquire the particularities of the data. After training on examples, the network provides a non-linear representation of shape by means of its modes of variation. So far the representation has been tested on simple shapes and variations showing promising results, see Figure 11.
    Further characteristics of non-linear models should be examined in the future, as for example the possibilities of shape decomposition.

    Figure 11: A neural network learns the variation of a clover-like shape. The shapes are produced by the network after learning the essentials from examples. Stacked together, they leave the impression of a vase.

31. Global shape description in 2D and 3D by polynomial expansion
    Ola Weistrand, Gunilla Borgefors
    Funding: TFR; UU TN-faculty
    Period: 9701-
    Partners: Christer Kiselman, Dept. of Mathematics, UU; Örjan Smedby, Dept. of Medicine and Care, Linköping University Hospital
    Abstract: Shape description derived from volume images is usually local, e.g., finite elements, surface facets, and spline functions. This can be a severe limitation on usefulness, as comparison between different shapes becomes very difficult. In 2D, Fourier descriptors is a successful and often used global descriptor with adaptable accuracy. This concept cannot be immediately generalised to 3D because it relies heavily on the existence of an ordering of the boundary pixels. The aim of this project is to overcome this problem and develop methods for global shape description in 3D. At the moment we study a limited class of objects, those that are homotopic to the sphere. By recursively morphing a sphere to the surface of the object, a parametrisation of the object is obtained from a parametrisation of the sphere. The method is computationally attractive. Using the object parametrisation we can approximate coordinate functions using a linear combination of spherical harmonics, that is a complete orthonormal set of functions on the unit sphere. By aligning the coordinate system along the principal axis of the object we hope to obtain approximately invariant coefficient for objects differing only by a combination of translations and rotations

32. Accurate and precise size estimators for digitised 2D and 3D objects using local computations
    Joakim Lindblad, Ingela Nyström
    Funding: UU TN-faculty
    Period: 0012-
    Partners: Jayaram K. Udupa, MIPG, Dept. of Radiology, University of Pennsylvania, Philadelphia, USA
    Abstract: Information is irrevocably lost in the process of digitising a continuous object of the real world to fit the digital world of the computer. Therefore, feature measurements of digitised objects can be no more than estimates. Good estimators are those that approach the corresponding feature value of the continuous original object. The possibility to use only local computations is a desirable property in computerised image analysis, both to keep the complexity level at a minimum, and to enable for parallelism in various ways. This project aims at finding good local estimators for size related measures of digitised objects, i.e., perimeter and area of 2D objects, and surface area and volume of 3D objects. Statistical validation of the estimators have been performed on large numbers of computer generated digitised objects. The breakdown behaviour at very low resolution, as well as the asymptotic behaviour at high resolution have been studied.
    A surface area estimator with improved precision and accuracy obtained by optimising the area contribution locally, was presented at the DGCI 2002 conference in Bordeaux. The work on enclosed volume of triangulated surfaces, which can be computed efficiently, in the same elegant way similarly to digital surface integration, simultaneously with surface area computation, was presented at SPIE Medical Imaging 2002. This projects relates to Project 33 on shape of fuzzy sets.

33. Fuzzy shape analysis in 2D and 3D
    Nataša Sladoje (Matic), Ingela Nyström, Gunilla Borgefors
    Funding: SLU S-faculty, UU TN-faculty
    Period: 0109-
    Partners: Punam K. Saha, MIPG, Dept. of Radiology, University of Pennsylvania, Philadelphia, USA
    Abstract: Fuzzy segmentation methods, that have been developed in order to reduce the negative effects of the unavoidable loss of data in the digitisation process, initialise the interest for new shape analysis methods, handling grey-level images. Very little has been published to date on shape analysis of fuzzy segmentations. We have performed initial studies on perimeter and area of 2D fuzzy subsets, where the focus have been on objects with fuzzy border. We assume that in the segmentation process most pixels easily can be classified either as object or background, but for pixels located in the vicinity of the boundary of the digitised object it is hard to make such a discrimination. One way to treat these pixels is to determine the extent of their membership to the object. The membership value of a pixel can be defined as the fraction of its area that belongs to the original object, see Figure 12. We have implemented a method where we propose perimeter and area estimators adjusted to the discrete case. The estimates are computed for a large collection of fuzzy segmented digitised objects. We have concluded that our method highly improves both accuracy and precision of the results obtained from crisp (hard) segmentation, especially in the case of low resolution images, i.e., small objects.
    As the next step, we will investigate different ways to extend the main binary shape analysis tools (e.g., distance transform, medial axis, notion of convexity, and moments) to fuzzy segmented 2D and 3D images.

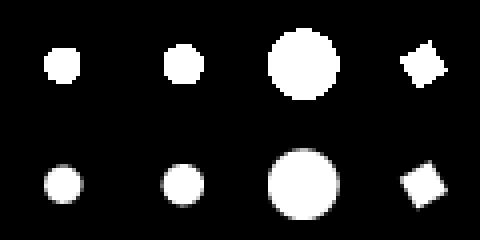

    Figure 12: Examples of digitised objects with crisp (top) and fuzzy border (bottom).
